Q1. Which of the following gives the best information about the progress of a flight between 2 en-route waypoints from RNAV equipment ?
Correct answer is – ETO/ETA

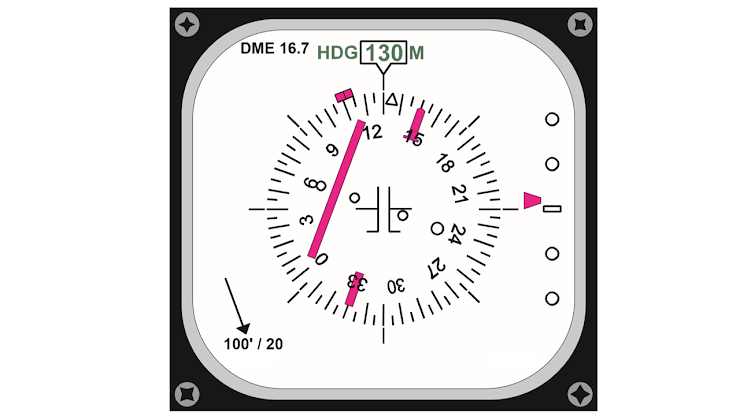

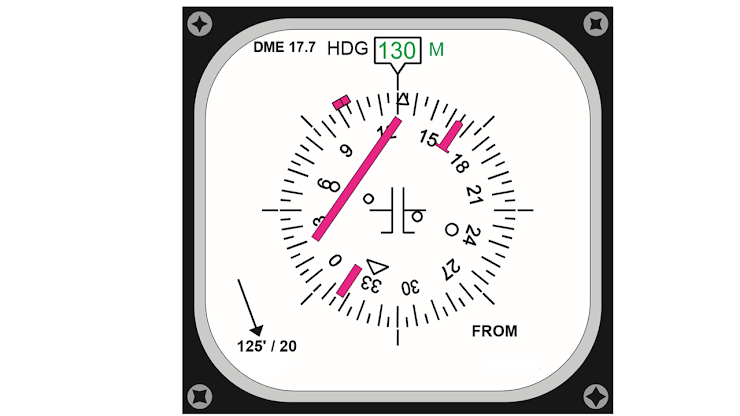

Q2. Which of the following EFIS mode is displayed below ?
Correct answer is – Full VOR
Q3. Which of the following EFIS mode is displayed below ?
Correct answer is – Full ILS
Q4. Under JAR-25 colour code rules, features displayed in red on an Electronic Flight Instrument System (EFIS), indicate:
Correct answer is – warnings, flight envelope and system limits
Q5. Under JAR-25 colour code rules, features displayed in green on an Electronic Flight Instrument System (EFIS), indicate:
Correct answer is – engaged modes
Q6. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), increasing intensity of precipitation are coloured in the order:
Correct answer is – green, amber/yellow, red, magenta
Q7. In the Electronic Flight Instrument System (EFIS) display given below The Magnetic track followed by the aircraft is ________________________.
Correct answer is – 132
Q8. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), current data and values are coloured:
Correct answer is – white
Q9. Radar returns, on a B737-400, can be displayed on all Electronic Horizontal Situation Indicator (EHSI) screen modes of an Electronic Flight Instrument System (EFIS) WITH THE EXCEPTION OF:
Correct answer is – FULL NAV, FULL VOR/ILS and PLAN

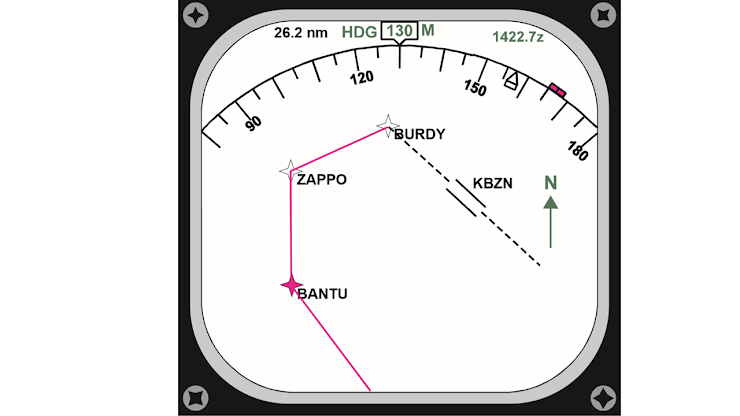

Q10. Which of the following EFIS mode is displayed below ?
Correct answer is – Plan Mode
Q11. Which of the following EFIS mode is displayed below ?
Correct answer is – Plan Mode
Q12. Under JAR-25 colour code rules features displayed in cyan/blue, on an Electronic Flight Instrument Systems (EFIS), indicate:
Correct answer is – the sky

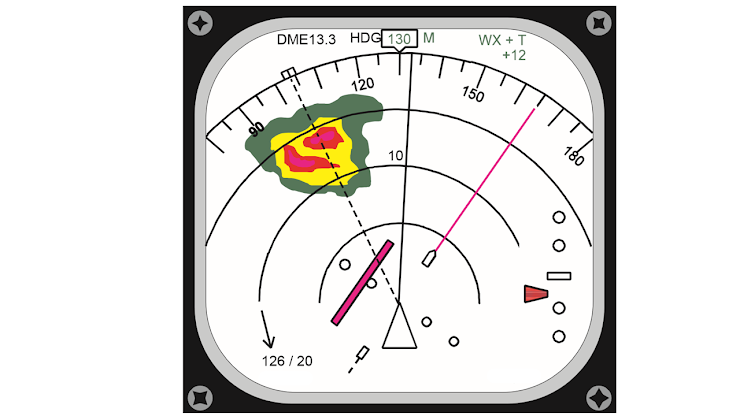

Q13. Which of the following EFIS mode is displayed below ?
Correct answer is – Expanded ILS
Q14. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), selected data and values are coloured:
Correct answer is – green
Q15. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), armed modes are coloured:
Correct answer is – white

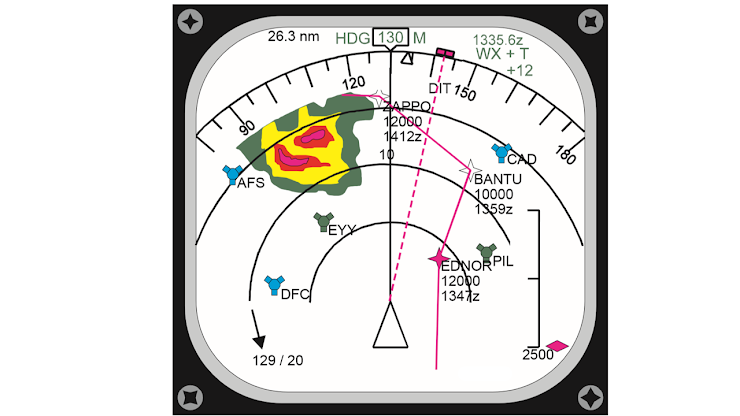

Q16. Which of the following EFIS mode is displayed below ?
Correct answer is – MAP
Q17. In the Electronic Flight Instrument System (EFIS) display given below The Magnetic Heading of the aircraft is ________________________.
Correct answer is – 130
Q18. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), turbulence is coloured:
Correct answer is – white or magenta

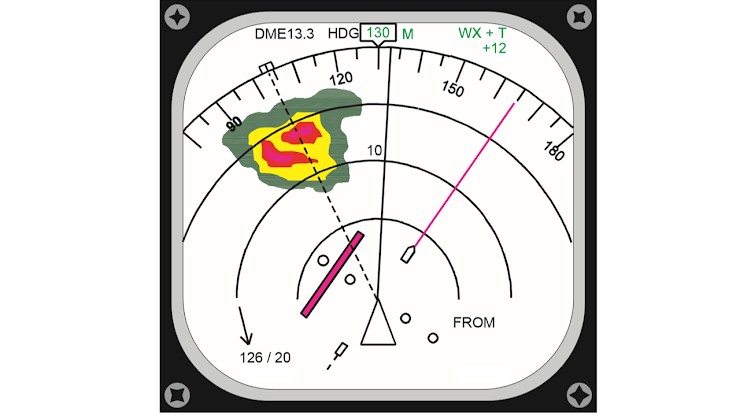

Q19. Which of the following EFIS mode is displayed below ?
Correct answer is – Expanded VOR
Q20. Under JAR-25 colour code rules for Electronic Flight Instrument Systems (EFIS), the active route/flight plan is coloured:
Correct answer is – magenta

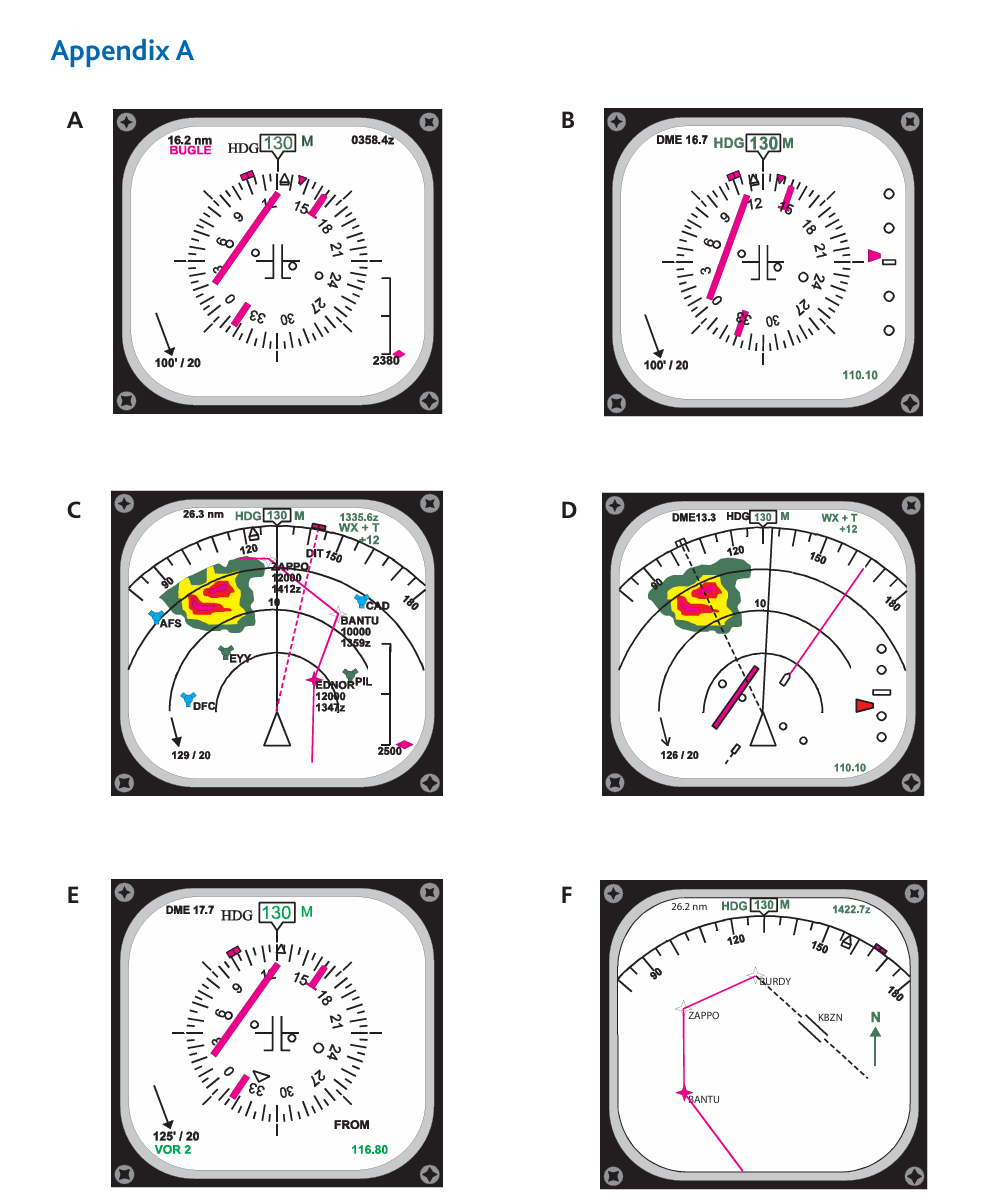

Q21. Refer to appendix A. Which display shows the expanded ILS mode?
Correct answer is – D

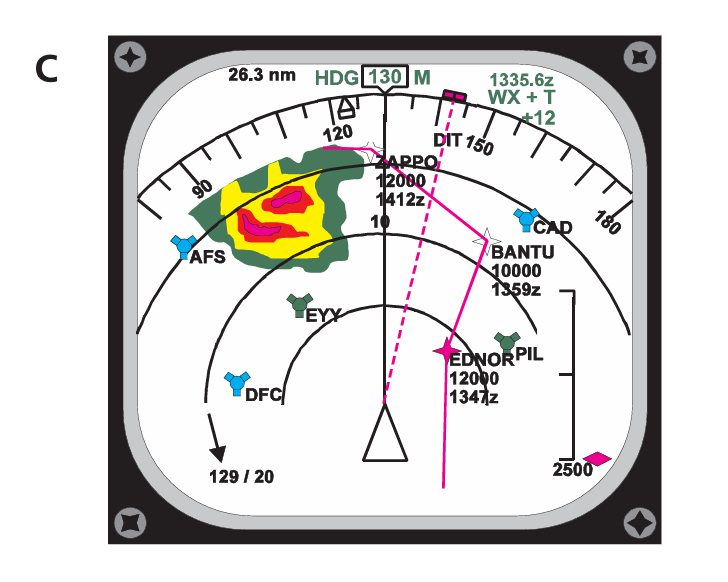

Q22. Refer to appendix A. Which mode is display C?
Correct answer is – Map

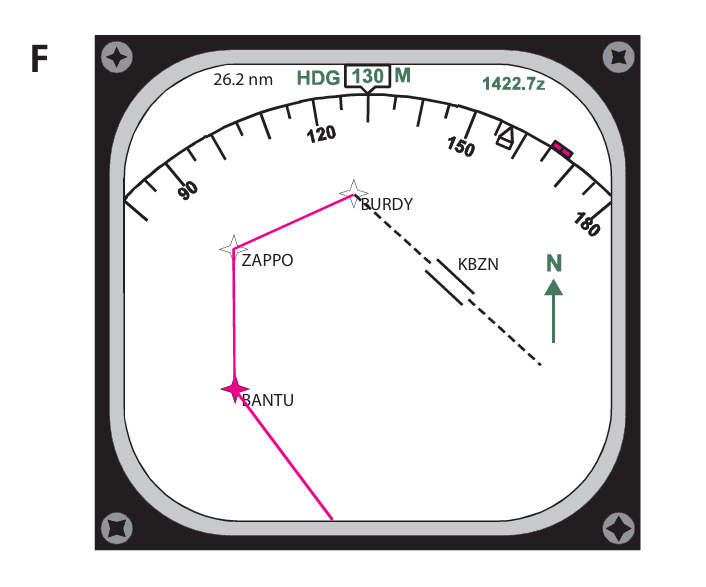

Q23. Refer to appendix A. Which mode is display F?
Correct answer is – Plan

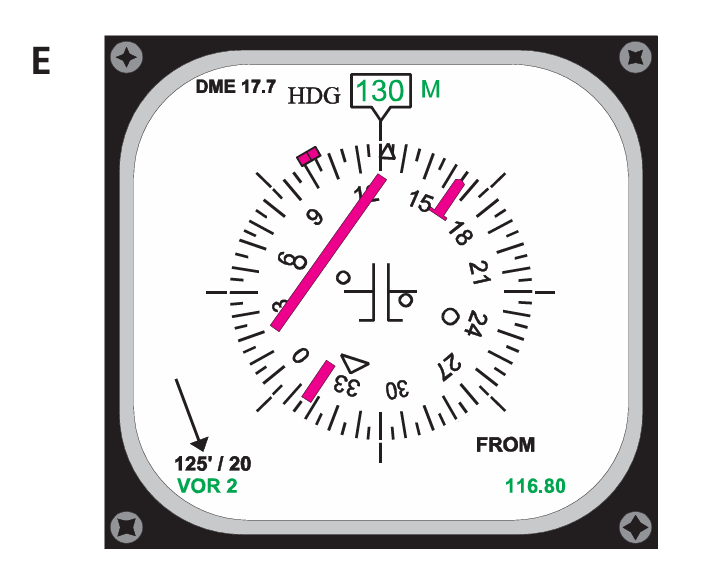

Q24. On display E, what is the approximate deviation from the required track?
Correct answer is – 8°
Q25. On display E, what is the aircraft’s track ?
Correct answer is – 133°
Q26. The horizontal deviation on the expanded ILS display represented by one dot is approximately:
Correct answer is – 0.5°
Q27. On which displays will the range markers be displayed regardless of the weather selection ?
Correct answer is – MAP
Q28. The heading inputs to the EHSI are from:
Correct answer is – the IRS through the symbol generator
Q29. Refer to Appendix A. The track direction from BANTU to ZAPPO on display F is:
Correct answer is – 360° (T)
